weftron LOUVER_tron^® 512

is a high performance contact insert within the weftron.com product line of
Low Resistance - High Power Contact Elements.
Multiple contact louvers spaced at 0.8 - 1.0mm are crafted in a 12mm wide copper beryllium contact strip. So these contact louvers provide the essentially neccessary spring force required for high performance connections.
Thus introducing precisely defined multiple contact points in the connection when used inbetween two mating conducting surfaces.
Technical parameters of LOUVER_tron^® 512 are in the table on the backside of the data sheet.
Depending on the application LOUVER_tron^® 512 may be used either in flat or in pre-rounded shape. Consequently the number of contact louvers, the associated metal components and the ambient conditions define the electrical performance characteristics of this  high power contact system.
For different requirements weftron offers a variety of application specific options. Please consult us for any of your projects involving connections with special requirements.

Features

dense arrangement of contact bridges at a 0.8 - 1.0mm spacing
12mm contact band width
various band thicknesses depending on application
different leg angles depending on application

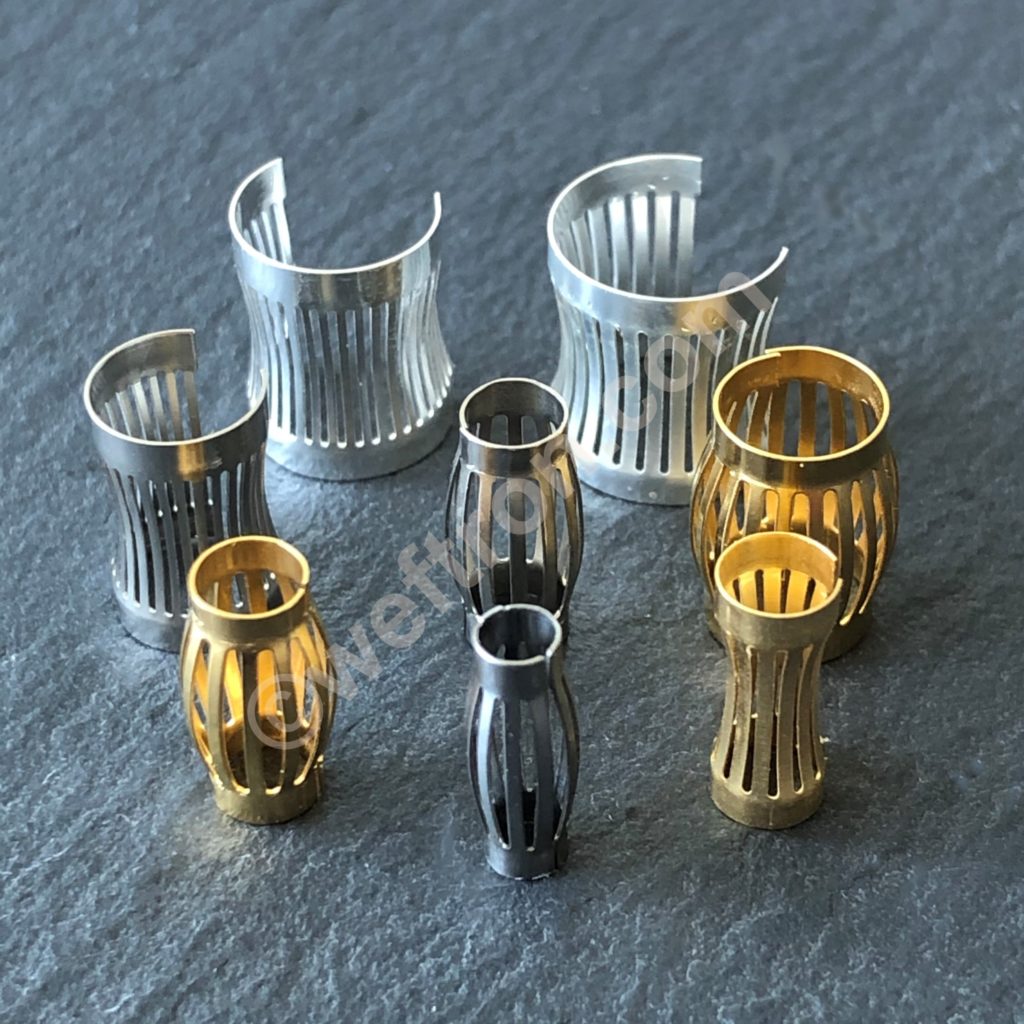

pre-rounded contact cage diameters for either pin or bushing applications
various contact strip lengths for flat contacting arrangements
various surface treatments depending on application
low weight, highly flexible
